Objective

Main objective of this Pager View  tutorial is to help you to view Image as a Pager View.

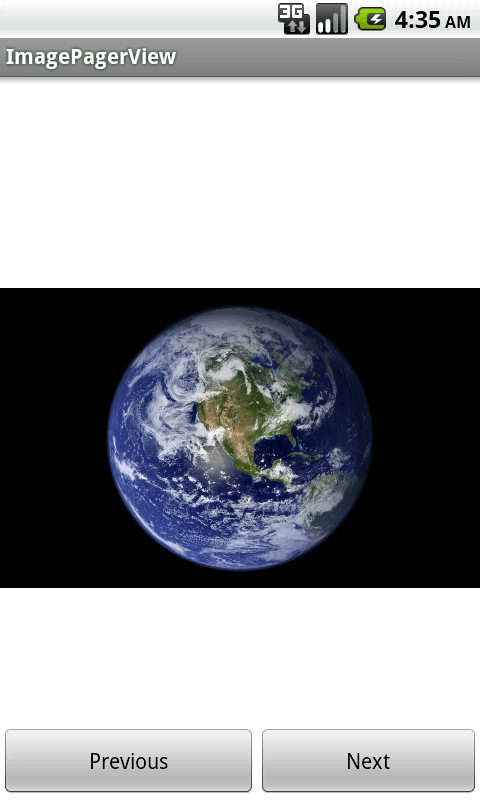

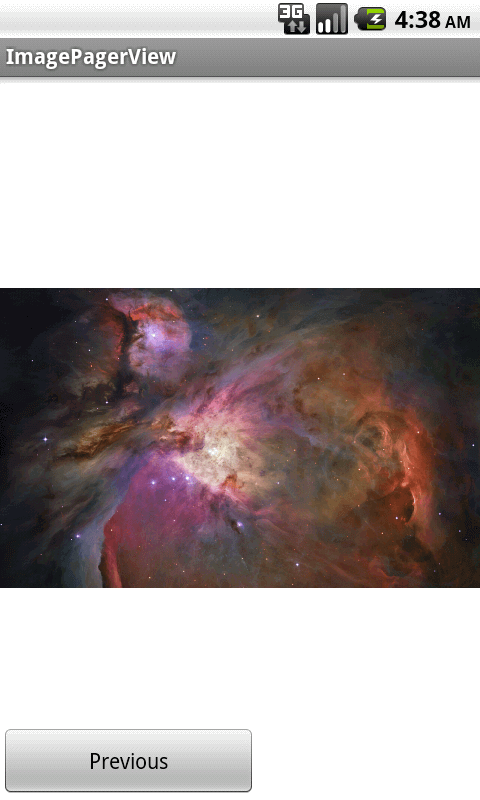

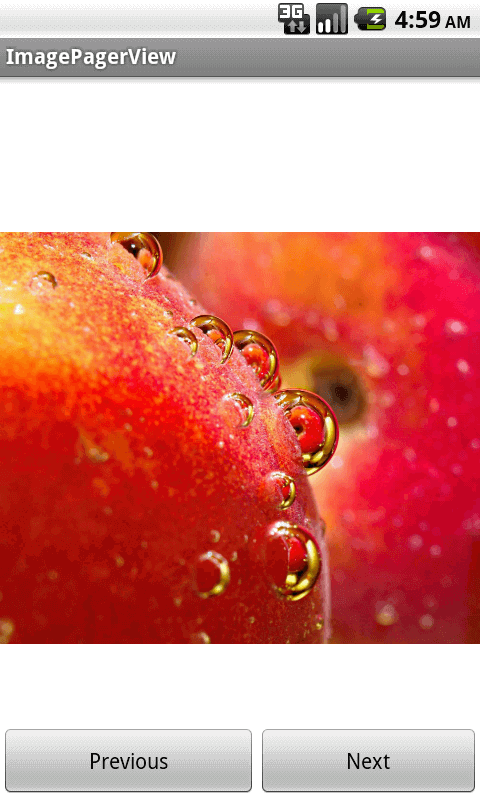

You will get Final Output:

  • Image Fragment Pager View
  • Image Fragment Pager View
  • Image Fragment Pager View


Step 1 Images.java file

Create new class in our Project named Images.java In this class getImageItem() method return ArrayList imageId.

public class Images {
    private ArrayList<Integer> imageId;
    public Images() {
        imageId = new ArrayList<Integer>();
        imageId.add(R.drawable.a1);
        imageId.add(R.drawable.a2);
        imageId.add(R.drawable.a3);
        imageId.add(R.drawable.a4);
        imageId.add(R.drawable.a5);
    }
    public ArrayList<Integer> getImageItem() {
        return imageId;
    }
}


Step 2 PagerView Fragment

Now Start Coding for the fragment  PagerView. We need 2 more classes for the FragmentPagerView.

FragmentPagerAdapter FragmentPagerAdapter extends  FragmentStatePagerAdapter which was generate previous, next and current fragment. So if there is too large image size it can handled by FragmentStatePagerAdapter.
FragmentImageView It generate fragment as many as given by size of item data.
public class FragmentPagerAdapter extends FragmentStatePagerAdapter {
    private ArrayList<Integer> itemData;
    public FragmentPagerAdapter(FragmentManager fm,ArrayList<Integer> itemData) {
        super(fm);
        this.itemData = itemData;
    }
    @Override
    public int getCount() {
        return itemData.size();
    }
    @Override
    public void destroyItem(ViewGroup container, int position, Object object) {
        super.destroyItem(container, position, object);
    }
    @Override
    public Fragment getItem(int position) {
        FragmentImageView f = FragmentImageView.newInstance();
        f.setImageList(itemData.get(position));
        return f;
    }
}
public class FragmentImageView extends Fragment {
    private Integer itemData;
    private Bitmap myBitmap;
    public ProgressDialog pd;
    private ImageView ivImage;

    public static FragmentImageView newInstance() {
        FragmentImageView f = new FragmentImageView();
        return f;
    }

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
    }

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
        View root = inflater.inflate(R.layout.imageview, container, false);
        ivImage = (ImageView) root.findViewById(R.id.ivImageView);
        setImageInViewPager();
        return root;
    }
    public void setImageList(Integer integer) {
        this.itemData = integer;
    }
    public void setImageInViewPager() {
        try {
            //if image size is too large. Need to scale as below code.
            BitmapFactory.Options options = new BitmapFactory.Options();
            options.inJustDecodeBounds = true;
            myBitmap = BitmapFactory.decodeResource(getResources(), itemData, options);
            if (options.outWidth > 3000 || options.outHeight > 2000) {
                options.inSampleSize = 4;
            } else if (options.outWidth > 2000 || options.outHeight > 1500) {
                options.inSampleSize = 3;
            } else if (options.outWidth > 1000 || options.outHeight > 1000) {
                options.inSampleSize = 2;
            }
            options.inJustDecodeBounds = false;
            myBitmap = BitmapFactory.decodeResource(getResources(), itemData,options);

            if (myBitmap != null) {
                try {
                    if (ivImage != null) {
                        ivImage.setImageBitmap(myBitmap);
                    }
                } catch (Exception e) {
                    e.printStackTrace();
                }
            }
        } catch (OutOfMemoryError e) {
            e.printStackTrace();
            System.gc();
        }
    }

    @Override
    public void onDestroyView() {
        super.onDestroyView();
            if (myBitmap != null) {
                myBitmap.recycle();
                myBitmap = null;
            }
        }
}

For more information about FragmentStatePagerAdapter please refer following link:



Step 3 ImagePagerView

Now in our Main Activity Class named ImagePagerView.

public class ImagePagerView extends FragmentActivity implements OnClickListener, OnPageChangeListener {

    private Button btnImagePrevious, btnImageNext;
    private int position = 0, totalImage;
    private ViewPager viewPage;
    private ArrayList<Integer> itemData;
    private FragmentPagerAdapter adapter;
    private Images imageId;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.imageview_page);

        viewPage = (ViewPager) findViewById(R.id.viewPager);
        btnImagePrevious = (Button) findViewById(R.id.btnImagePrevious);
        btnImageNext = (Button) findViewById(R.id.btnImageNext);
        imageId = new Images();
        itemData = imageId.getImageItem();
        totalImage = itemData.size();
        setPage(position);
        adapter = new FragmentPagerAdapter(getSupportFragmentManager(), itemData);
        viewPage.setAdapter(adapter);
        viewPage.setOnPageChangeListener(ImagePagerView.this);
        btnImagePrevious.setOnClickListener(this);
        btnImageNext.setOnClickListener(this);
    }

    @Override
    public void onClick(View v) {
        if (v == btnImagePrevious) {
            position--;
            viewPage.setCurrentItem(position);
        } else if (v == btnImageNext) {
            position++;
            viewPage.setCurrentItem(position);
        }
    }

    @Override
    public void onPageScrollStateChanged(int arg0) {
    }

    @Override
    public void onPageScrolled(int arg0, float arg1, int arg2) {
    }

    @Override
    public void onPageSelected(int position) {
        this.position = position;
        setPage(position);
    }

    private void setPage(int page) {
        if (page == 0 && totalImage > 0) {
            btnImageNext.setVisibility(View.VISIBLE);
            btnImagePrevious.setVisibility(View.INVISIBLE);
        } else if (page == totalImage - 1 && totalImage > 0) {
            btnImageNext.setVisibility(View.INVISIBLE);
            btnImagePrevious.setVisibility(View.VISIBLE);
        } else {
            btnImageNext.setVisibility(View.VISIBLE);
            btnImagePrevious.setVisibility(View.VISIBLE);
        }
    }
}

For more information about FragmentActivity please refer following link:

I hope you enjoy this tutorial and it would be helpful to you.
