Objective

This tutorial teaches how to integrate Media Player in iOS application using swift.



With the help of MediaPlayer framework provided by iOS we will integrate the Media playing facility in our application. Follow the below steps in order to get idea about Media Player.

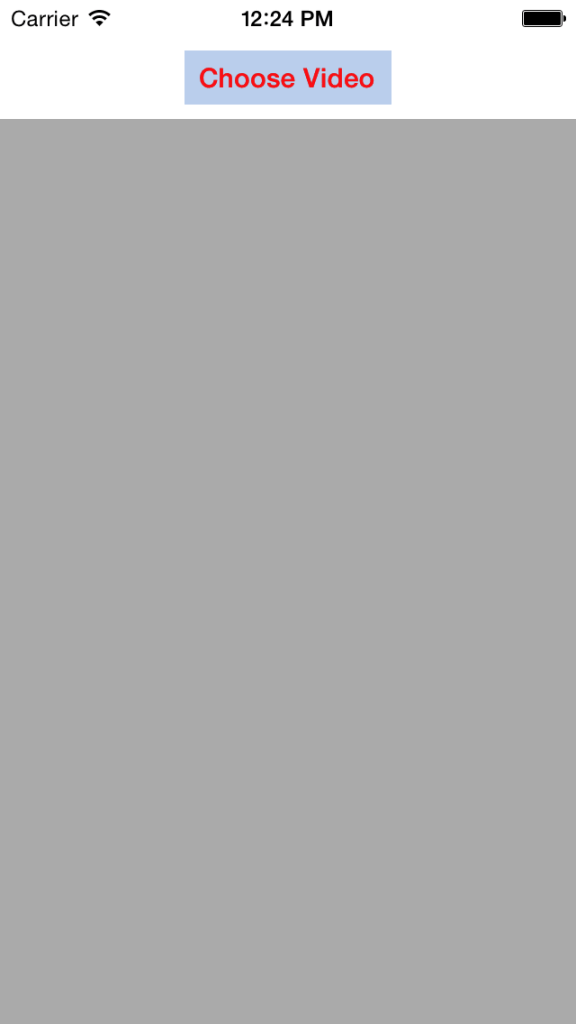

Below figure will gives you brief idea about the user interface of application:

interface-of-application



Step 1 Create a New XCode Project

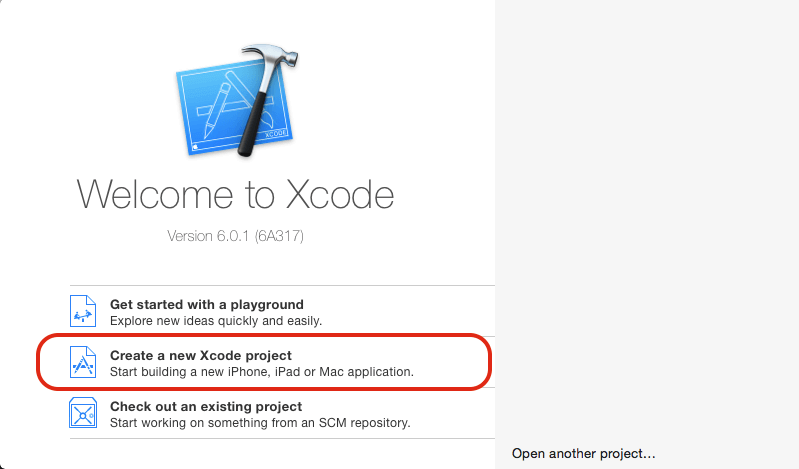

Open Xcode and select Create a new Xcode project

create-a-new-xcode-project



Step 2 Select Single View Application

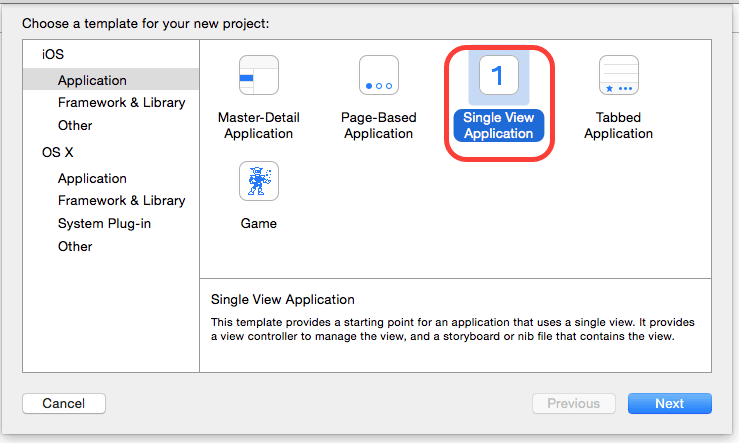

Select Single View Application from given list of templates.

single-view-application1



Step 3 Fill Products Detail

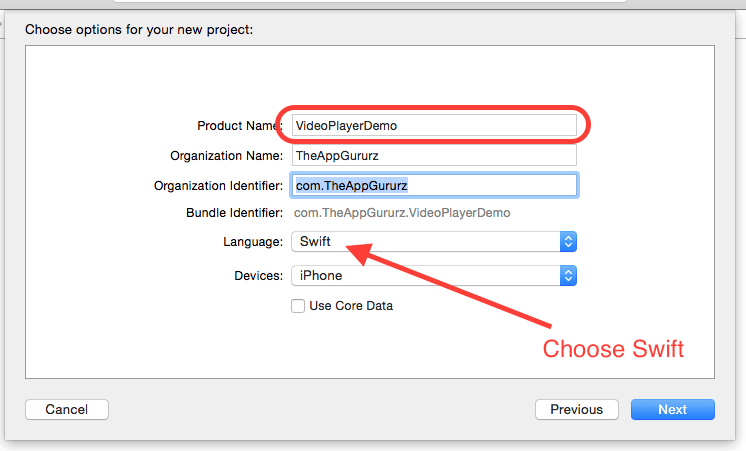

Name the product as VideoPlayerDemo and provide rest of the informtion and do not forget to choose Swift as the language . Once this is done press next button.

videoplayerdemo

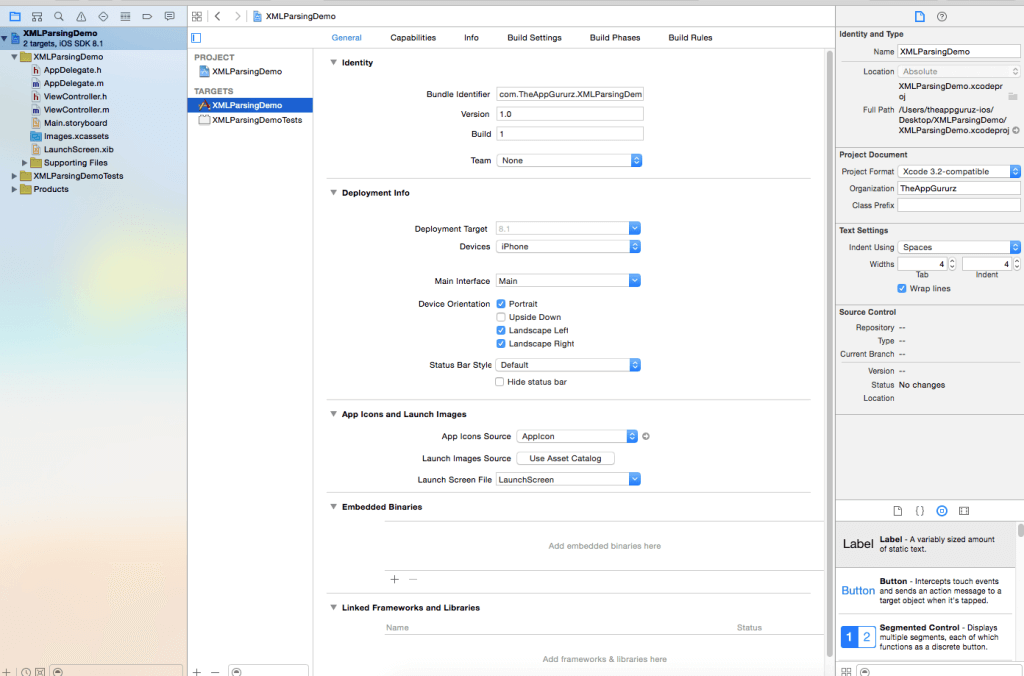

Then following window will appear:

xmlparsingdemo1

The main files of generated application are shown below. By implementing code in these files we can perform various operations in the application.

video-palyer-demo



Step 4 Add Framework

To integrate media player facility in our application MediaPlayer framework must be added.

Select the project as shown:

video-player-demo-click-here

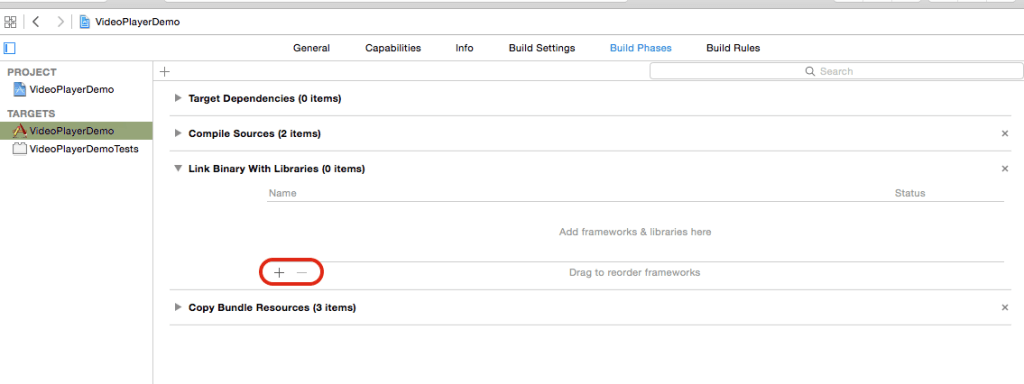

Select the build phase section and below window appears.

build-phase-section

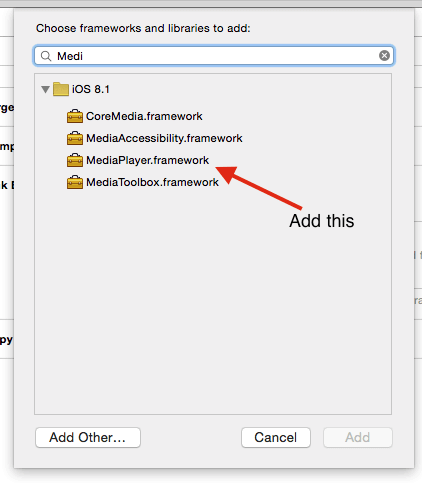

Click on add button as shown above to add framework in our project.

add-framework

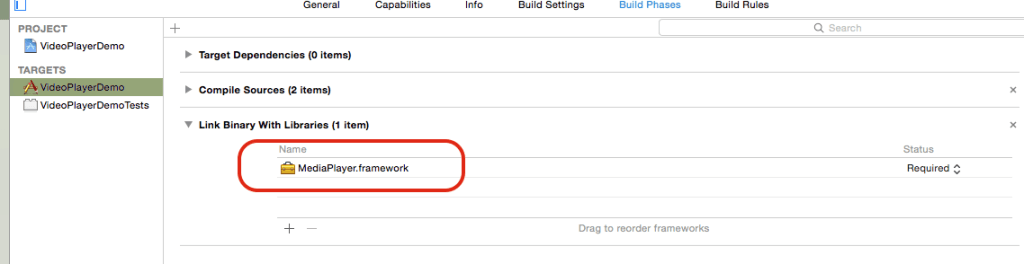

As shown in the above figure, find the MediaPlayer.framework and press Add button.

mediaplayer-framework



Step 5 Design UI

Once every things ready select the storyboard file from the above menu and add a button and a view into your view controller. Name the button as Choose Video and Create Outlet for the view in your ViewController.swift file. Thus the interface is ready.

choose-video



Step 6 Import Framework

Now select the ViewController.swift file and import MediaPlayer and MediaCoreServices framework.

Add following code in ViewController.swift file:

import MediaPlayer
import MobileCoreServices


Step 7 Delegate & Datasource Implementation

Now make the ViewController to act as UIImagePickerControllerDelegate and UINavigationControllerDelegate.

Add the following code to ViewController.swift file:

class ViewController: UIViewController, UIImagePickerControllerDelegate, UINavigationControllerDelegate


Step 8 Initialised MovieController

Now create object of MPMoviePlayerController and NSURL to store url of video. Add the code as shown below.

var objMoviePlayerController: MPMoviePlayerController = MPMoviePlayerController()
var urlVideo :NSURL = NSURL()


Step 9 Set UIImagePickerController

Now write following line of code to the action method for Choose Video.

@IBAction func btnChooseVideoTapped(sender: AnyObject)
    {
        let ipcVideo = UIImagePickerController()
        ipcVideo.delegate = self
        ipcVideo.sourceType = UIImagePickerControllerSourceType.PhotoLibrary
        let kUTTypeMovieAnyObject : AnyObject = kUTTypeMovie as AnyObject
        ipcVideo.mediaTypes = [kUTTypeMovieAnyObject as! String]
        self.presentViewController(ipcVideo, animated: true, completion: nil)
    }

In the above code we create object of UIImagePickerController and configure it so that we can select a video from our PhotoLibrary.



Step 10 Choose Video & Set To Video Controller

Now implement the delegate method of UIImagePickerController as shown below:

func imagePickerController(picker: UIImagePickerController, didFinishPickingMediaWithInfo info: [String : AnyObject]) {
        urlVideo = info[UIImagePickerControllerMediaURL] as! NSURL
        self.dismissViewControllerAnimated(true, completion: nil)

        objMoviePlayerController = MPMoviePlayerController(contentURL: urlVideo)
        objMoviePlayerController.movieSourceType = MPMovieSourceType.Unknown
        objMoviePlayerController.view.frame = self.vwVideoView.bounds
        objMoviePlayerController.scalingMode = MPMovieScalingMode.AspectFill
        objMoviePlayerController.controlStyle = MPMovieControlStyle.Embedded
        objMoviePlayerController.shouldAutoplay = true

        vwVideoView.addSubview(objMoviePlayerController.view)

        objMoviePlayerController.prepareToPlay()
        objMoviePlayerController.play()
    }

In the above code we obtain the url of the selected video in our NSURL object and set the obtained url as the contentURL of our MPMoviePlayerController object. Now, configure its various properties as shown.

After that, we have to add the view of objMoviePlayerController to our main view and add the method to play the video.

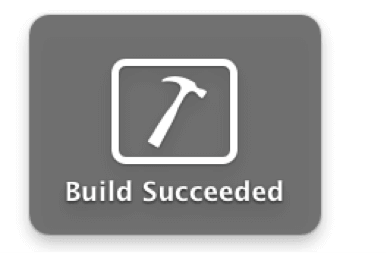

Step 11 Build & Run Project

succeded

Select the video from PhotoLibrary by pressing the Choose Video button..

choose-video

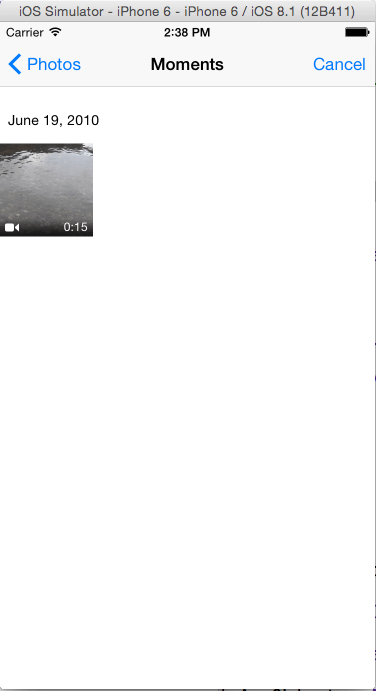

Click on the video:

click-on-video

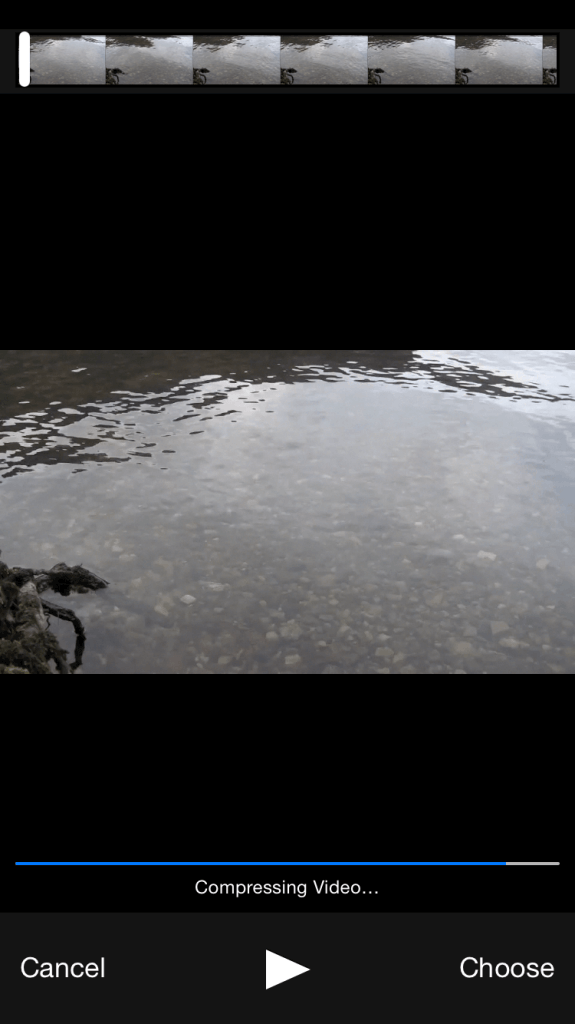

Click Choose to play the video in our application:

choose-to-play

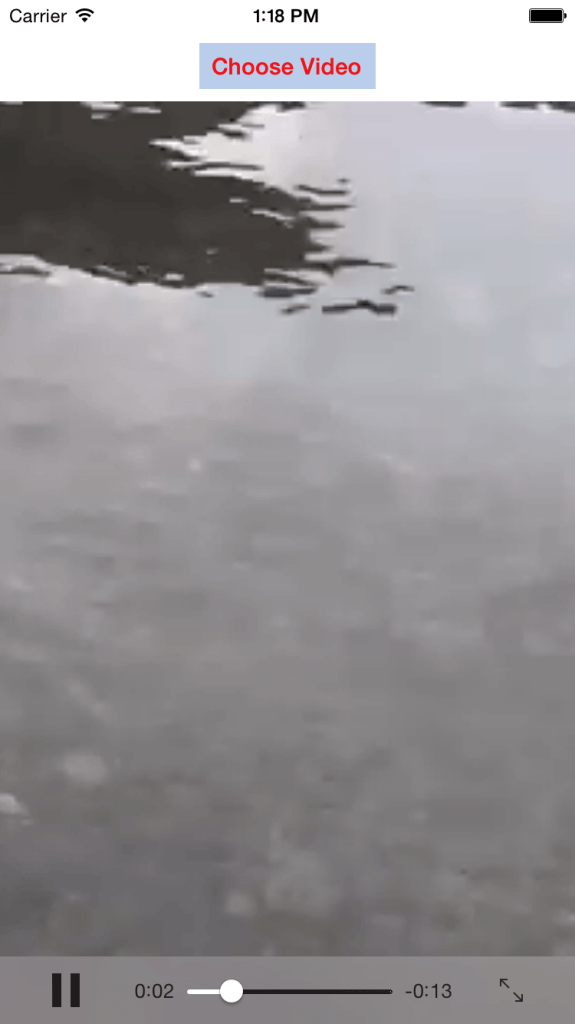

Finally the video will be played in our application:

view-video

I hope this blog is helpful while Integrating Media Player in iOS Using Swift. Let me know if you have any question regarding iOS please comment here I will reply you ASAP
