Objective

Main objective of this blog post is to give you an idea about to how to Animating Unity UI 4.6 Elements

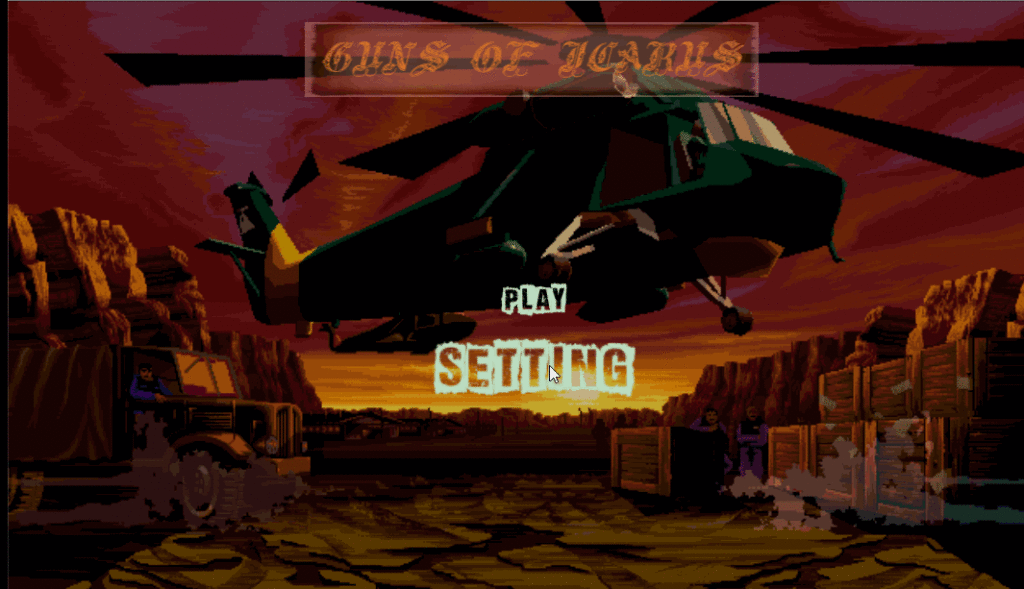

You will get Final Output:

ui-animation-demo

Unity provides UI and animation features using which we can design our own effective UI for Our Game.



Step 1 Create a Simple UI

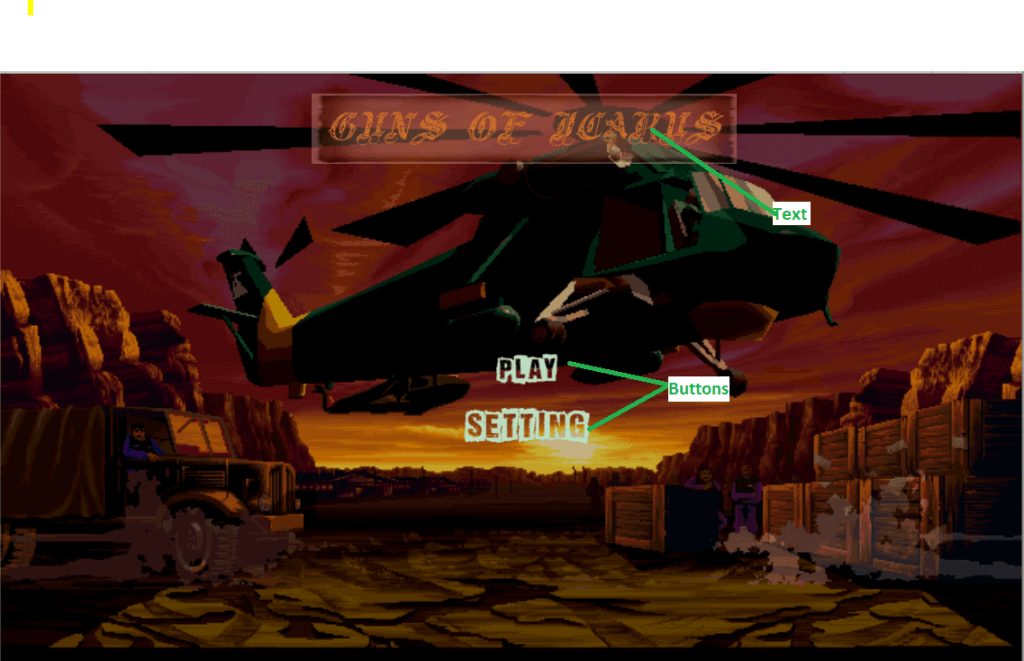

Here, I have designed an effective UI, but you don’t need to design a UI like this for learning purpose. You can just create a simple UI.

play-setting



Step 2 Appling Animation on UI Buttons

Now, let us see how to set animation on UI Buttons. Just follow the simple steps to apply animation on UI Buttons.

apply-animation-on-buttons

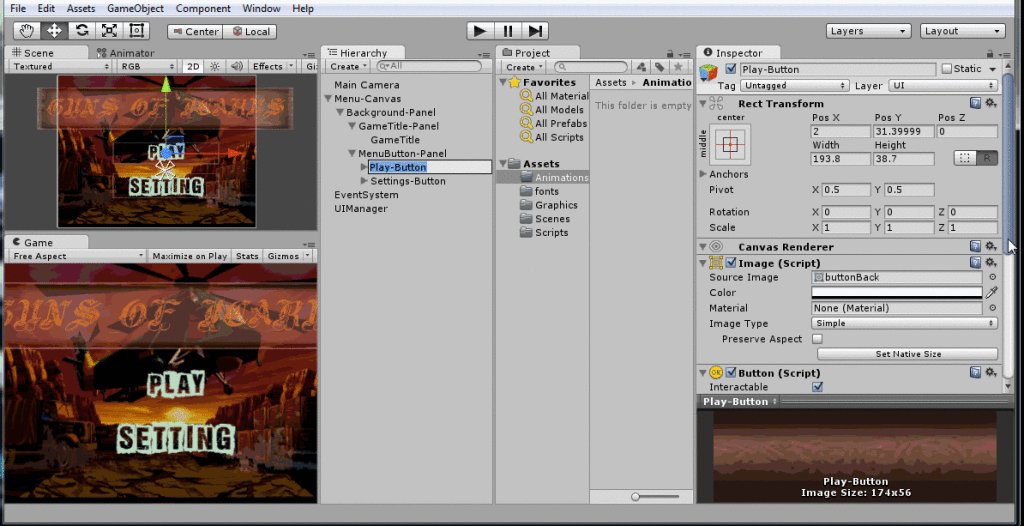

  • Select "Play-Button" and go to inspector window.
  • Now, Create Animator. In "Button (Script) Tab" select Transition as Animation and click on Auto Generate Animation Button to create animator.
  • Now, again select "Play Button" and open "Animation Window" (Window->Animation)
  • In the "Animation Window" click on Record Button and save the new animation at a suitable location.

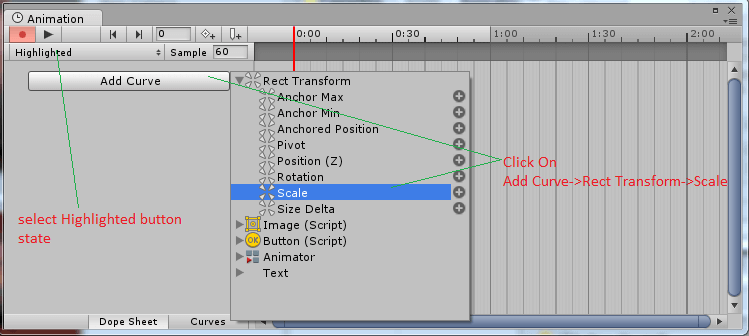

  • Default Animation is played on button’s Normal State. Whereas; in this tutorial I’ve set animation on button’s Highlight State.

add-curve-scale



Step 3 Button Click Event

Opening One Animated Panel on Button’s Click event

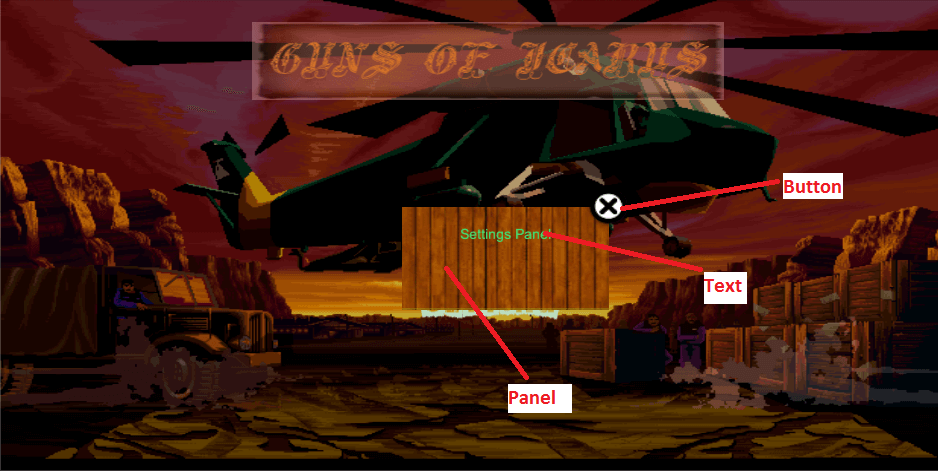

  • First of all we require a simple panel to apply animation on. Here, I have designed One Panel which has One Button and One Text.

setting-panel

  • Now set Panel Scale as ? x=0, y=0 and z=0

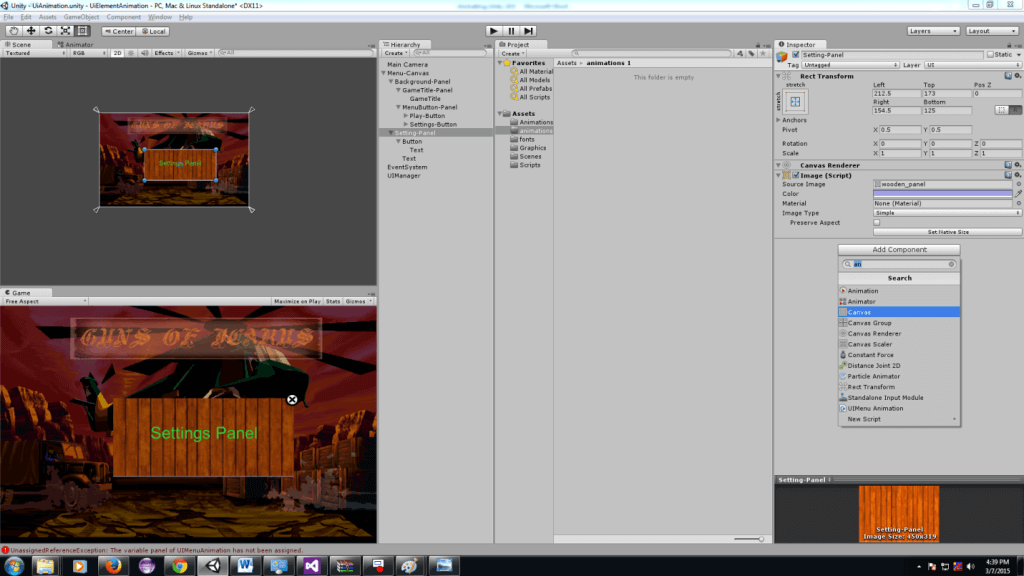

  • Create a new Animator Controller and add the animation clip to Animator Controller

animation-window

  • Select “Setting Panel” and Open “Animation Window” and then follow the steps given below.
  1. Create Two Animation Clips
    • idel [panel scale x=0,y=0,z=0]
    • open [panel scale x=1,y=1,z=1]
      rect-transform

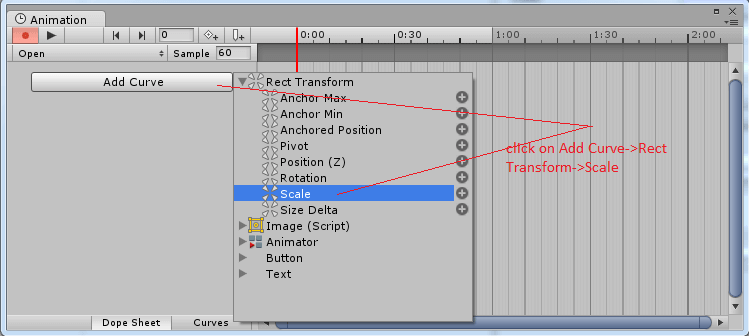

  2. After selecting the scale option, increase the panel Scale x,y,z.
  3. Double Click on Animator Controller and create One Integer Parameter "isOpen".
    ui-animation

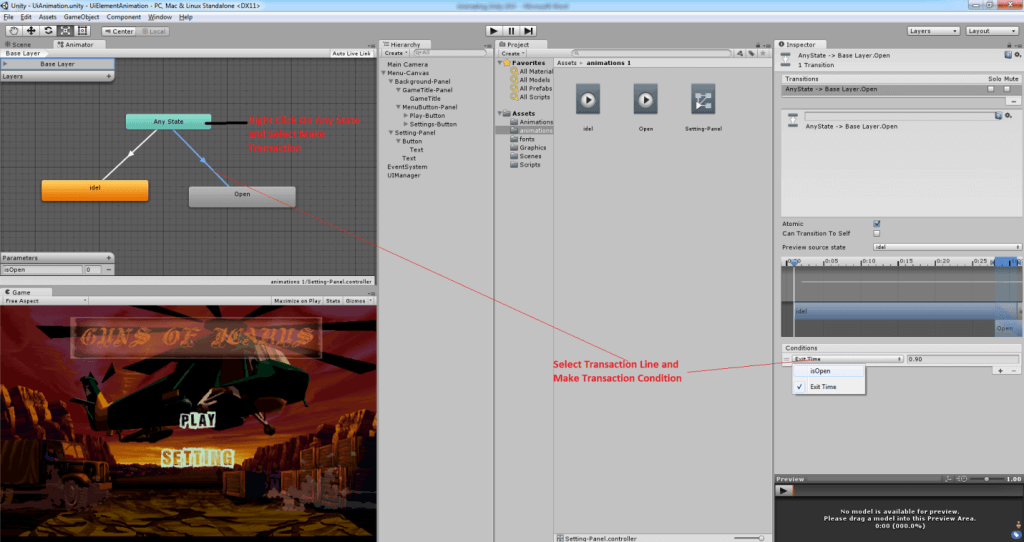

  4. Now, add transaction to the animation clip as shown.
    media-transecation-condition


Step 4 Create a Script

Create UI Manager Script that has a panel reference and two public functions:

  1. for setting Button Click events
  2. for setting Panels Close Button events
using UnityEngine;
using System.Collections;
using UnityEngine.UI;

publicclassUIMenuAnimation : MonoBehaviour {
publicGameObject panel;
Animator panelAnimation;
// Use this for initialization
void Start () {
panelAnimation = panel.GetComponent<Animator>();
}
// Update is called once per frame
void Update () {
}
//this for settings button
publicvoid OnClickSettings() {
Debug.Log("Settings Button Clicked");
panel.SetActive(true);
//Open Panel Animation
panelAnimation.SetInteger("isOpen", 1);

}

//this for panels close button
publicvoid OnPanelCloseButton()
{
//close panel animation
panelAnimation.SetInteger("isOpen", 0);
}
}


Step 5 Add Click Events to UI Buttons

  • Setting button click events:

ui-menu-animation

  • Setting Panel’s close button click events:

on-panel-close-button

 I hope you find this project very helpful while Animating Unity UI 4.6 Elements. Let me know in comment if you have any questions regarding Unity. I will reply you ASAP.
