Objective

You can create circular progress bar in unity for your video game. Here is a simple example of how to achieve circular progress bar.



In this example we simply use Below steps to create a circular Progress bar. You can make it look like as per following steps:



Step 1 Basic Setup

First, Create a Quad in Hierarchy.

In inspector of Quad, use Transparent/ CutOut/ VertexLit or Unlit/ TransparentCutOutshader that can switch between two textures in Material.

Add Appropriate texture (must be alpha cut out texture).

Now add below script to quad in hierarchy.



Step 2 Code Sample

Code for circular progress bar:

usingUnityEngine;
usingSystem.Collections;

public class CiclularProgress : MonoBehaviour {

publicinttimeToComplete = 3;

// Use this for initialization
void Start () {
//Use this to Start progress
StartCoroutine(RadialProgress(timeToComplete));
}

IEnumeratorRadialProgress(float time)
    {
float rate = 1 / time;
float i = 0;
while (i < 1)
        {
            i += Time.deltaTime * rate;
gameObject.renderer.material.SetFloat("_Cutoff", i);
yield return 0;
        }
    }
}

Note

To use this ProgressBar, set the value of timetoComplete variable as a number of seconds (In the above example we assume that timetoComplete=3) that’s required to complete one entire cycle.



Step 3 Output

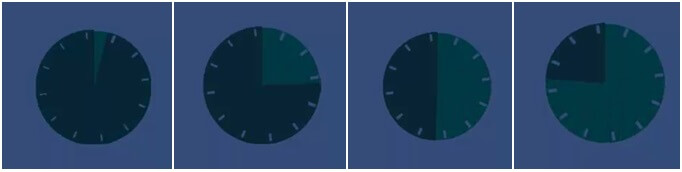

Circular Progress Bar Output

A Video of above code you can find here:
