In this blog post, I’ll show you how you can implement a spin wheel/wheel of fortune in your game.



Step 1 Introduction to Wheel of Fortune

I guess, you already know what Wheel of Fortune is.

If you’re fond of playing Candy Crush, you should have already spun that Daily Booster Wheel countless times.

Spin & Win from 8 Ball Pool is also quite popular among gamers.


You might have seen it on some reality TV game shows, where a person spins a wheel to get a prize or a task to win the prize.

Do you want similar kind of wheel in you game?

If yes! Then you have come to the right place!

It’s quite simple, but you might find a couple of things tiny bit tricky and confusing.

Worry not! I will try to make it simple as I can.

Let’s get rolling then..!


Step 2 Scene Setup

Let's Setup the Scene.


2.1 Wheel Setup

  • Set your wheel in the scene view. Make sure the partitions on the wheel are of same size.
  • Set small circle colliders on the edges (you need to create another empty GameObjects to store colliders) and set them as children of your wheel GameObject.
  • Now to keep the hierarchy neat & tidy you can create another empty GameObject as parent to the collider objects.

2.2 Arrow Setup

  • I’m taking a simple black cube to represent an arrow; you can use any of your favorites.
  • Add a BoxCollider2D & a HingeJoint2D component to your Arrow object.

If you’ve never encountered HingeJoint component before, it works as a hinge joint like we use in doors & windows.

Spend some time to play with its properties to get your desired result.

You can also refer to the Unity Docs for more detailed descriptions:

We’ve completed the scene setup now.

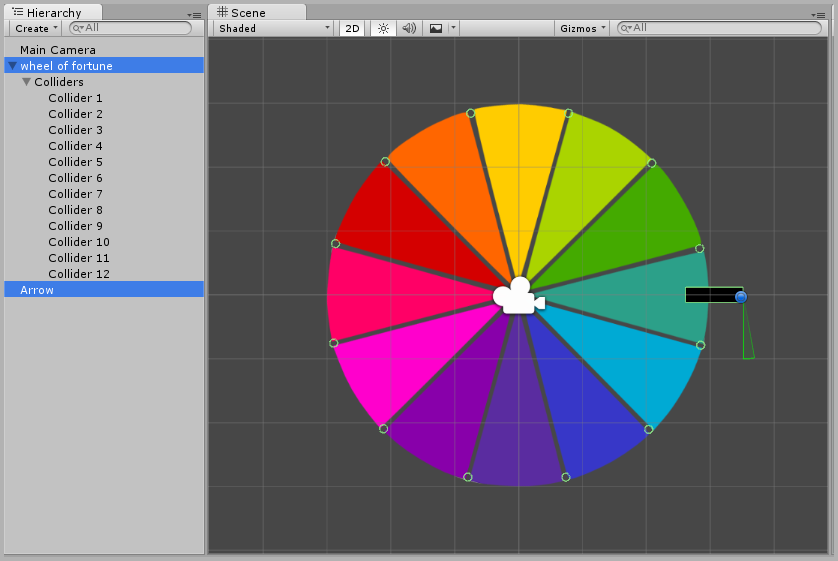

It should look something like this:

Scene Setup


Step 3 Scripting

This time there’s only one script for us to worry about. (That’s a good thing, right?)

using UnityEngine;
using System.Collections;
using System.Collections.Generic;

public class SpinWheel : MonoBehaviour
	public List<int> prize;
	public List<AnimationCurve> animationCurves;
	private bool spinning;
	private float anglePerItem;
	private int randomTime;
	private int itemNumber;
	void Start(){
		spinning = false;
		anglePerItem = 360/prize.Count;
	void  Update ()
		if (Input.GetKeyDown (KeyCode.Space) && !spinning) {
			randomTime = Random.Range (1, 4);
			itemNumber = Random.Range (0, prize.Count);
			float maxAngle = 360 * randomTime + (itemNumber * anglePerItem);
			StartCoroutine (SpinTheWheel (5 * randomTime, maxAngle));
	IEnumerator SpinTheWheel (float time, float maxAngle)
		spinning = true;
		float timer = 0.0f;
		float startAngle = transform.eulerAngles.z;
		maxAngle = maxAngle - startAngle;
		int animationCurveNumber = Random.Range (0, animationCurves.Count);
		Debug.Log ("Animation Curve No. : " + animationCurveNumber);
		while (timer < time) {
		//to calculate rotation
			float angle = maxAngle * animationCurves [animationCurveNumber].Evaluate (timer / time) ;
			transform.eulerAngles = new Vector3 (0.0f, 0.0f, angle + startAngle);
			timer += Time.deltaTime;
			yield return 0;
		transform.eulerAngles = new Vector3 (0.0f, 0.0f, maxAngle + startAngle);
		spinning = false;
		Debug.Log ("Prize: " + prize [itemNumber]);//use prize[itemNumnber] as per requirement


Before I start explaining the code, attach the script to your wheel GameObject so that you can see the effect of code. That will make things easier to understand.


3.1 Animation Curves

As you can see in the code I’m using Animation Curves to set the wheel in motion. You can set a variety of shapes in these curves to have various kinds of motions for your wheel.

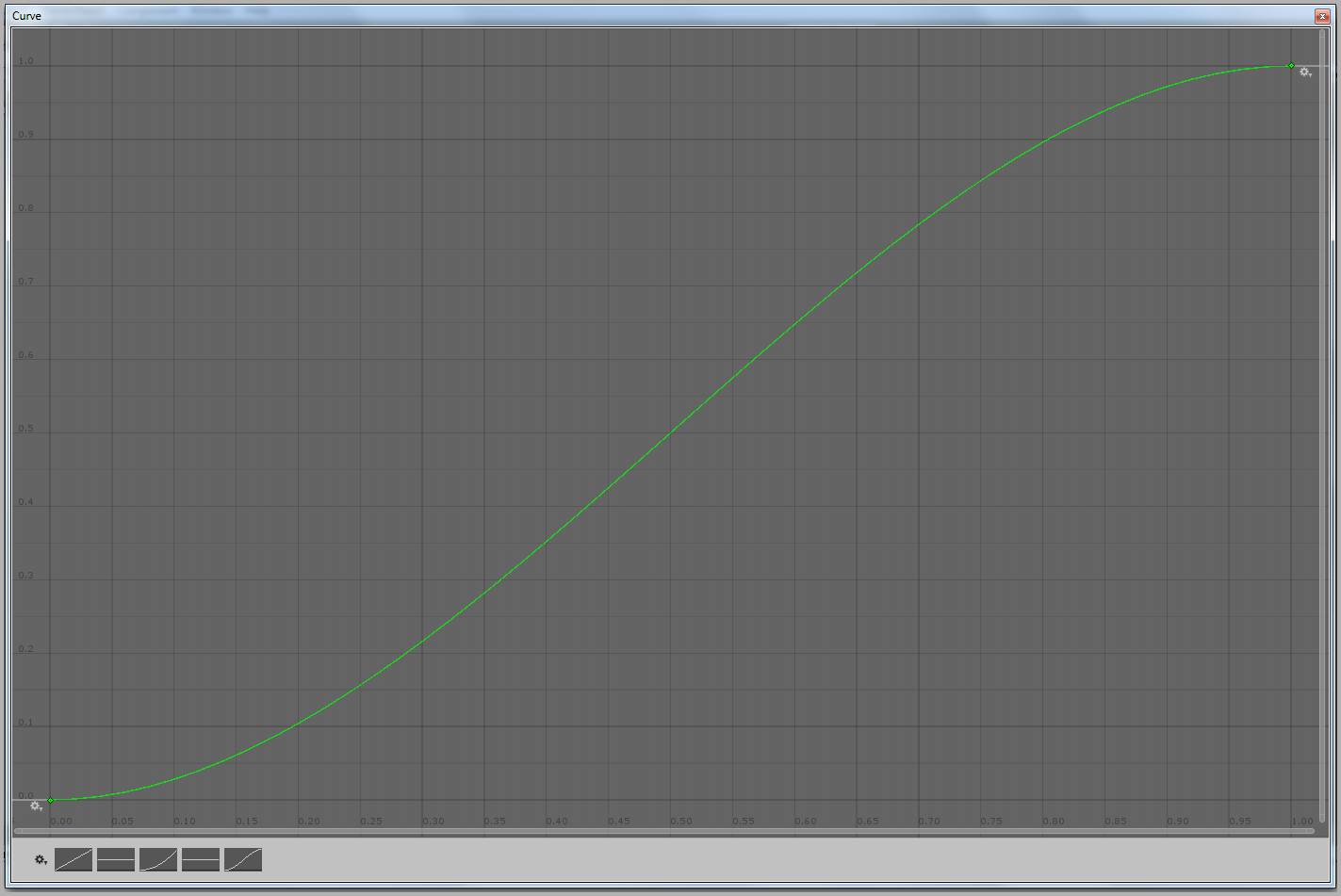

Animation Curves look like something below:

Animation Curve

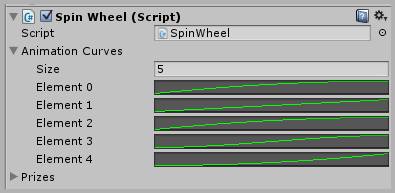

To access the curves, click on the curve in the inspector tab.

Animation Curves

Also DO NOT forget to set the proper size of prize list.

Now to Update() method:

  • It contains 2 random numbers and a coroutine call: SpeenTheWheel()
  • itemNumber sets the item which will be under the arrow when the wheel stops.
  • maxAngle (or finalAngle)denotes what the final angle will be.

[Yes! We’ll know the result before spinning the wheel. But don’t worry; it’s still a mystery for our players.]

Let's check SpinTheWheel() coroutine:

  • At first the timer, startAngle and maxAngle are initialized.
  • After that a random animation curve is selected.

And the while loop inside:

  • The code inside is to calculate angle (rotation in z) for the wheel.
  • Here Evaluate() of animation curve gives the value of curve for given time.

The spinning logic for our wheel ends here.


Step 4 Conclusion

Now it’s up to you how to use the prize on the itemNumber that we get at the end (which we knew from the beginning :) ).

Now you know why we never got that so called "BIG PRICE" or "JACKPOT" EVER..!!

Now hit play and spin the wheel to see what you can win (Don’t cheat :P).

Simple isn’t it? If you still have any doubts leave a comment & I’ll be back (Just like Arnold Schwarzenegger would say!).
