The main objective of this post is to describe that how to create gradient view in iOS.


You will get Final Output:

  • radial gradient

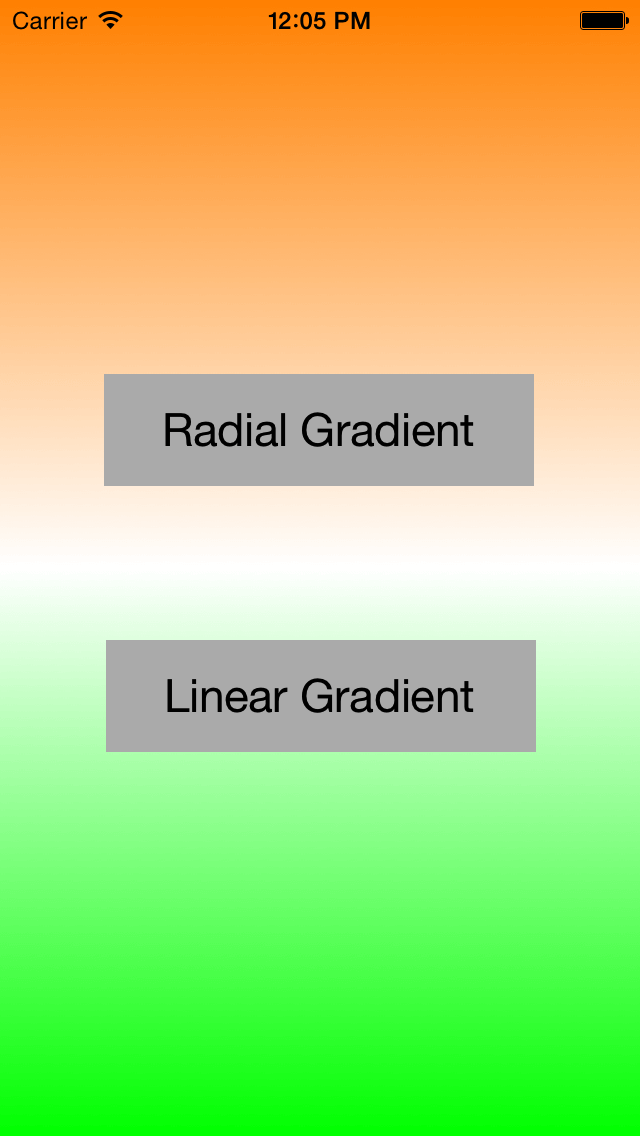

  • linear gradient

A Gradient is a filling of color that varies from one color to another.

Basically there are two types of gradient as following:

Linear Gradient/ Axial Gradient: It is described by 2 points, different color is available at each point. Those colors in gradient are calculated using interpolation say linear interpolation.

linear gradient

Radial gradient: It is described by circle where one color available at centre and changes when moving towards the edges. Position and colors are calculated by the interpolation say linear interpolation.

radial gradient

 Following are the steps that give you a brief introduction about how you can create gradient view in iOS.


Step 1 Create Xcode Project

For that you have to create one xCode project named it as Gradient_demo and saved it to particular. This project will contain one View Controller, which is our main view controller.


Step 2 Create File For Gradient

First create file GradientView.h and GradientView.m of type UIView into your project.


Step 3 Open Inspector Tab

Now drag and drop new view into your main view controller. And set its class from identity inspector tab as GradientView. You can get idea from following picture.


Step 4 Call For drawReact Function

Write following lines of code in (void)drawRect:(CGRect)rect method to your GradientView.m file.

NSMutableArray *marrColors=[[NSMutableArray alloc]initWithObjects:(__bridge id)[UIColor orangeColor].CGColor,(__bridge id)[UIColor whiteColor].CGColor,(__bridge id)[UIColor greenColor].CGColor, nil];
CGContextRef ref = UIGraphicsGetCurrentContext();
CFArrayRef colors =(__bridge CFArrayRef)([NSArray arrayWithArray:marrColors]);
CGColorSpaceRef colorSpc = CGColorSpaceCreateDeviceRGB();
CGGradientRef gradient = CGGradientCreateWithColors(colorSpc, colors, Nil);
// generates Linear Gradient
CGContextDrawLinearGradient(ref, gradient , CGPointMake(0.0, 0.0), CGPointMake(0,self.frame.size.height), kCGGradientDrawsAfterEndLocation);
//generates Radial Gradient
CGContextDrawRadialGradient(ref, gradient, CGPointMake(self.frame.size.width/2,self.frame.size.height/2), 0, CGPointMake(self.frame.size.width/2,self.frame.size.height/2), 330, 0);

Step 5 call drawRect Function on click

Now you have to call this drawInRect() method from your main view controller when button clicked , so that from main view controller you must have to call setNeesDisplay() method which implicitly called drawInRect() method.All these described as following:

{ // LinearGradient
[vwGradient setNeedsDisplay];
- (IBAction)btnRadialGradientClicked:(id)sender
// Radial Gradient
[vwGradient setNeedsDisplay];

If you have any query related to how to create gradient view in iOS comment them below.
