Objective

Main objective of this blog post is to give you an idea about how to use Music Visualization in Unity.



You will get Final Output:

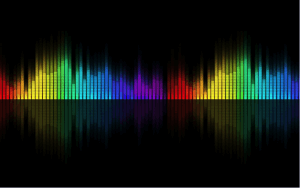

The image below will give you a better idea on what will be the outcome at the end.

music-edit



Step 1 Create Project

Create a new project named “Music Visualization” in Unity 2D.



Step 2 White Color Strip

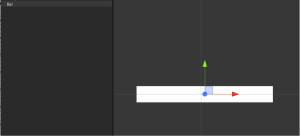

Take a small strip with white color.

You can download it from here.

bar



Step 3 Make Prefab

Make the prefab of the strip.

For getting more information about prefab click here.



Step 4 Apply Prefab

Now, drag that prefab into the scene, we need 64 objects of that prefab.

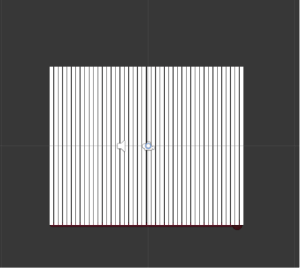

Now, set all the objects parallel to each other as shown below.

Note :

  • You can use a number of objects according to your own logic.
  • In this example, I have used 44 objects with an array of size = 64(44<64).

sound-edit



Step 5 Create Script

Create a new C# script and give it a name, BarVisulization.cs.

BarVisulization.cs:

Using UnityEngine;
using System.Collections;
using UnityEngine.UI;

[RequireComponent(typeof(AudioSource))]
public class BarVisulization : MonoBehaviour
{
        public AudioClip[] clips;
        public SpriteRenderer[] barsSprites;
        public Slider musicSlider;
        [Range(0,10)]
        public float
                colorMultiplyer = 1;
        [Range(0,1)]
        public float
                s = 1;
        [Range(0,1)]
        public float
                v = 1;
        private int index = 0;
        private float musicLength;

        void Update ()
        {
                Visulization ();
                if (Input.GetMouseButtonDown (0)) {
                        ChangeSound ();
                }
        MusicSlider();
        }

        void Visulization ()
        {
                float[] musicData = audio.GetSpectrumData (64, 0, FFTWindow.Triangle);
                int i = 0;
                while (i clips.Length - 1) {
                        index = 0;
                }
                print (index);
                audio.clip = clips [index];

                audio.Play ();
        }


    #region Static
        public static Color HSVtoRGB (float hue, float saturation, float value, float alpha)
        {
                while (hue > 1f) {
                        hue -= 1f;
                }
                while (hue  1f) {
                        saturation -= 1f;
                }
                while (saturation  1f) {
                        value -= 1f;
                }
                while (value  0.999f) {
                        hue = 0.999f;
                }
                if (hue  0.999f) {
                        saturation = 0.999f;
                }
                if (saturation  0.999f) {
                        value = 0.999f;
                }
                if (value < 0.001f) {
                        value = 0.001f;
                }

                float h6 = hue * 6f;
                if (h6 == 6f) {
                        h6 = 0f;
                }
                int ihue = (int)(h6);
                float p = value * (1f - saturation);
                float q = value * (1f - (saturation * (h6 - (float)ihue)));
                float t = value * (1f - (saturation * (1f - (h6 - (float)ihue))));
                switch (ihue) {
                case 0:
                        return new Color (value, t, p, alpha);
                case 1:
                        return new Color (q, value, p, alpha);
                case 2:
                        return new Color (p, value, t, alpha);
                case 3:
                        return new Color (p, q, value, alpha);
                case 4:
                        return new Color (t, p, value, alpha);
                default:
                        return new Color (value, p, q, alpha);
                }
        }
    #endregion
}

Notes:

float [ ] musicData = audio.GetSpectrumData (64, 0, FFTWindow.Triangle);

This function gives a float array with Spectrum value of the audio clip. For more information, click here.

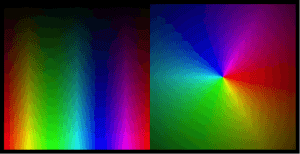

Here, I have used HSVtoRGB() function that converts HSVcolor to RGB color.
HSV colors are easy to understand. To know more about HSV colors, click here.

untitled



Step 6 Apply Script

Drag the script to an empty object.

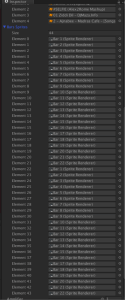

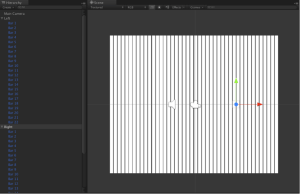

Select all 44 Bar Gameobjects and drag them on barSprites (reference to the public array barSprites, declared in BarVisulization.cs file).

  • main-camera-left-right
  • bars-sprits


Step 7 Set Camera

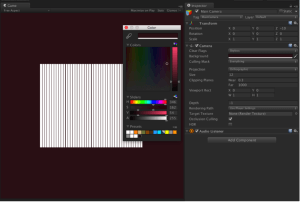

Set Camera background color to some dark color.

game



Step 8 Audio Clip

You will also need some audio clips for demonstration.

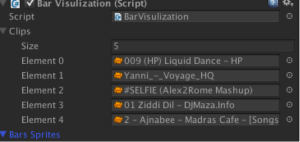

Import your audio files into your project and drag all of them on to the clips. (reference to the public array clips, declared in BarVisulization.cs file).

bar-visulaization



Step 9 Test

Now, you are ready to go. Press the play button and enjoy your music with lots of different colors on your bar sprites.

I hope you find this blog post very helpful while using Music Visualization in Unity. Let me know in comment if you have any questions regarding Unity. I will reply you ASAP.
