Objective

The Main Objective of this blog post is to explain about how to set a VerticalTextView widget with shadow effect in your android application.

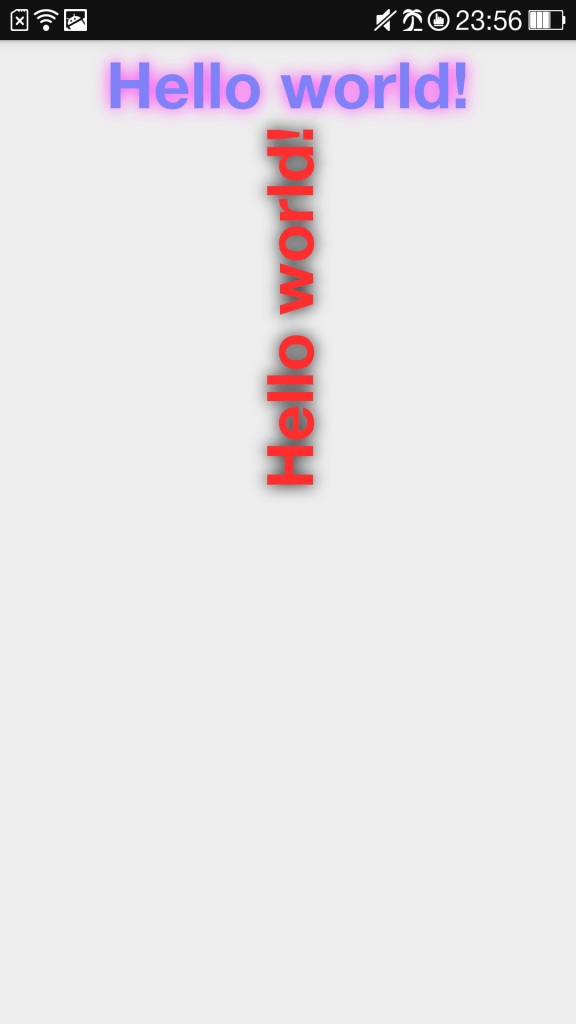

You will get final output:

demo-image

VerticalTextView is an Android textView widget which appears vertically. Here I have made customized VerticaltextView widget by extending the TextView.

Usage:

To use it in XML layout:

  1. Copy Library Class into your project
  2. Create VerticalTextView with shadow effect as given below:
<com.example.verticaltextviewwithseddow.VerticalTextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="center"
android:shadowColor="#000000"
android:shadowDx="0"
android:shadowDy="0"
android:shadowRadius="50"
android:text="@string/hello_world"
android:textColor="#FE2E2E"
android:textSize="40sp"
android:textStyle="bold"/>


Example:



Step 1 Create Layout file with VerticalTextView

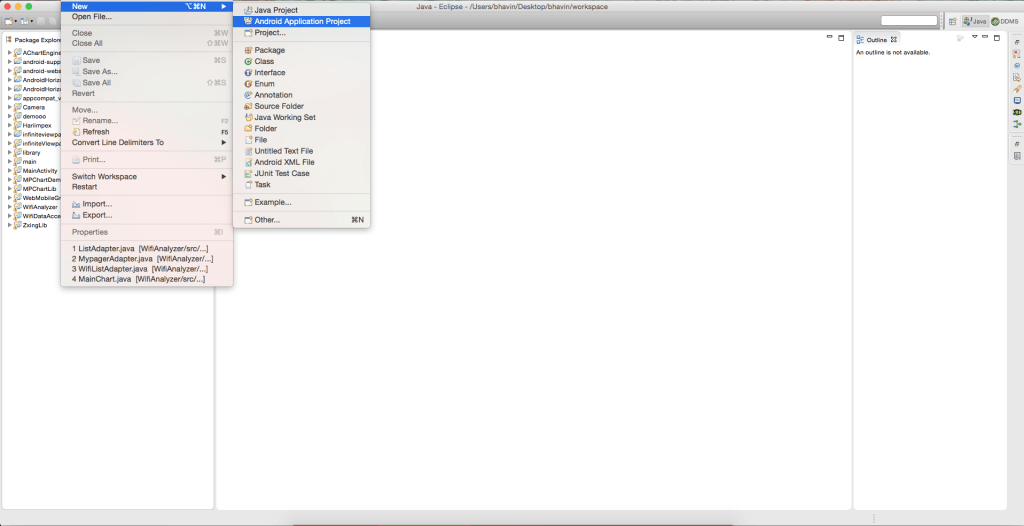

Open Eclipse and Create a New Application

open-eclips-create-new-application

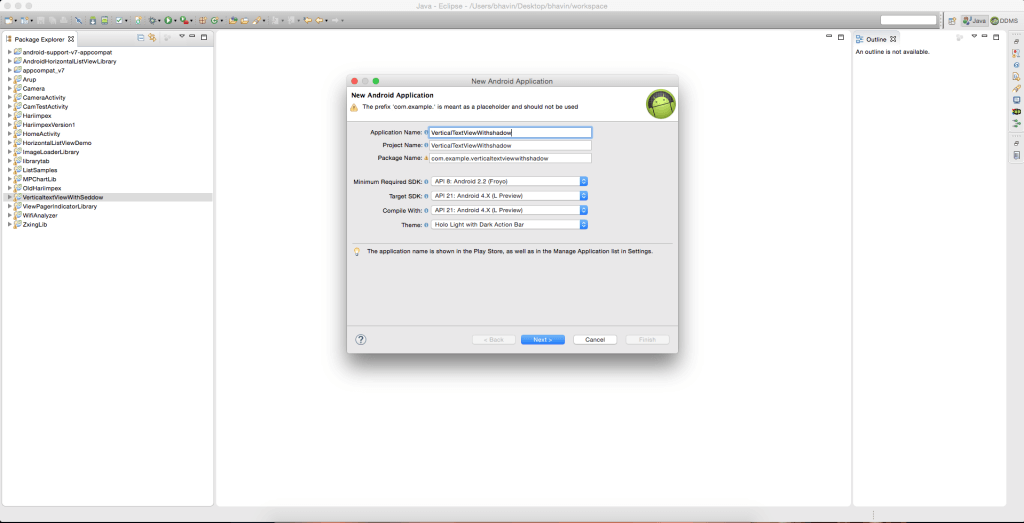

Here, Application is named as VerticalTextViewWithShadow

vertical-text-view-with-shadow

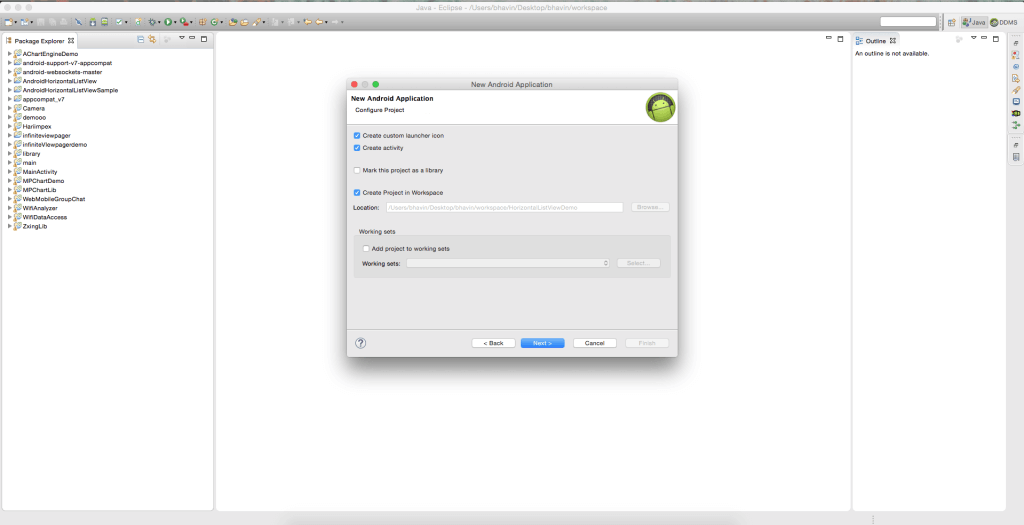

You will be able to see a popup window of new android Application, click on the next button in that window.

new-android-application

On clicking next you will get a configure Launcher icon, click on the next button.

configure-launcher-icon

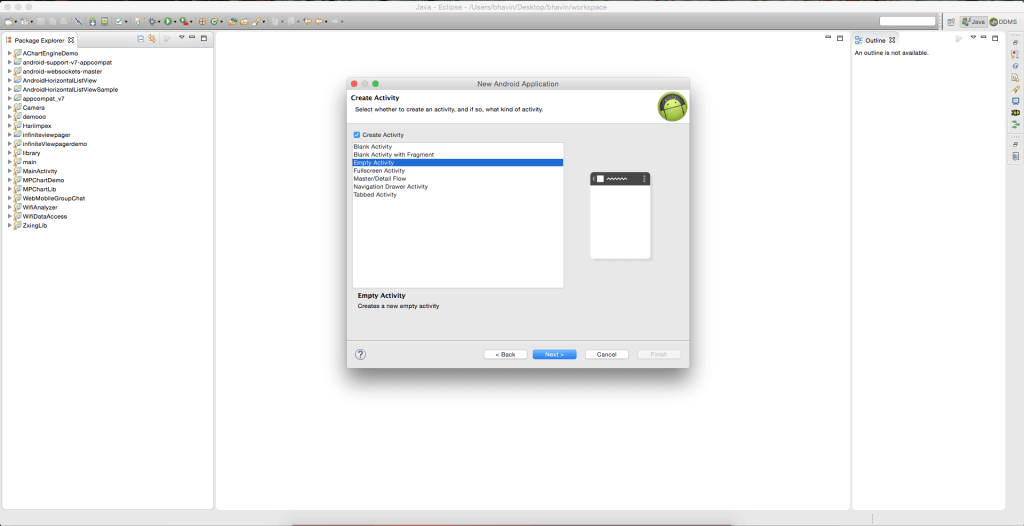

Now, select Empty Activity and click on the Next button.

empty-activity

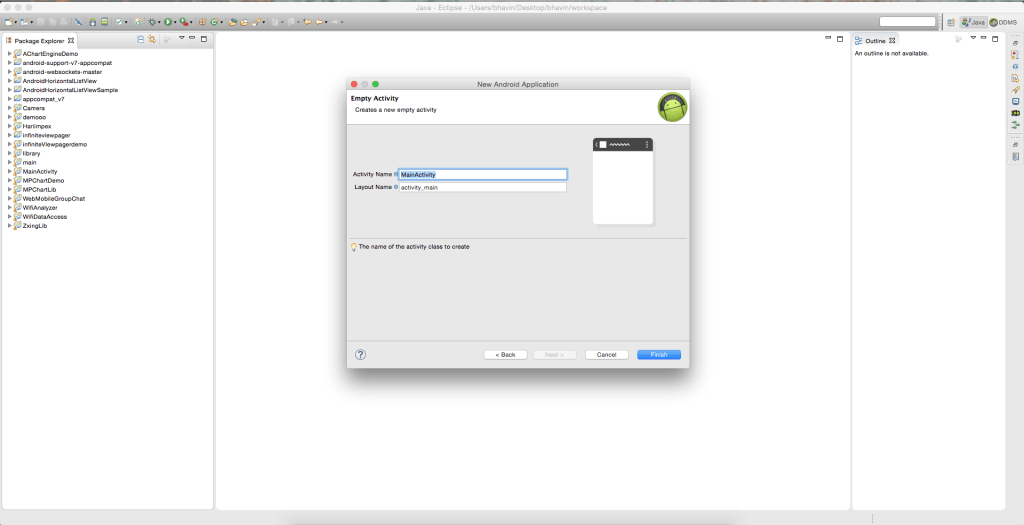

Here, write your Activity Name and then click on Finish.

activity-name



Step 2 Add a new class for VerticalTextView Library

Create a new class and name it as VerticalTextView.java

verticaltextview-java

Click on Finish.

new-java-class


Step 3 VerticalTextView.java file

publicclass VerticalTextView extends TextView {
finalbooleantopDown;

public VerticalTextView(Context context, AttributeSet attrs) {
super(context, attrs);
finalintgravity = getGravity();
if (Gravity.isVertical(gravity)
&& (gravity& Gravity.VERTICAL_GRAVITY_MASK) == Gravity.BOTTOM) {
setGravity((gravity& Gravity.HORIZONTAL_GRAVITY_MASK)
| Gravity.TOP);
topDown = false;
} else
topDown = true;
}

@Override
Protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
super.onMeasure(heightMeasureSpec, widthMeasureSpec);
setMeasuredDimension(getMeasuredHeight(), getMeasuredWidth());
}

@Override
protectedvoid onDraw(Canvas canvas) {
TextPaint textPaint = getPaint();
textPaint.setColor(getCurrentTextColor());
textPaint.drawableState = getDrawableState();

canvas.save();

if (topDown) {
canvas.translate(0, getHeight());
canvas.rotate(-90);
} else {
canvas.translate(getWidth(), 0);
canvas.rotate(90);
}

canvas.translate(getCompoundPaddingLeft(), getExtendedPaddingTop());

getLayout().draw(canvas);
canvas.restore();
}
}

For More About Gravity pleaser refer:

For more about onMeasure() method please refer:



Step 4 activity_main.XML file

<LinearLayoutxmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:id="@+id/LinearLayout1"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
tools:context="${relativePackage}.${activityClass}">

<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="center"
android:shadowColor="#FE2EF7"
android:shadowDx="0"
android:shadowDy="0"
android:shadowRadius="50"
android:text="@string/hello_world"
android:textColor="#8181F7"
android:textSize="40sp"
android:textStyle="bold"/>

<com.example.verticaltextviewwithseddow.VerticalTextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="center"
android:shadowColor="#000000"
android:shadowDx="0"
android:shadowDy="0"
android:shadowRadius="50"
android:text="@string/hello_world"
android:textColor="#FE2E2E"
android:textSize="40sp"
android:textStyle="bold"/>

</LinearLayout>


Step 5 Run your Application

Select Your Device from the List of Devices.

list-of-devices

After the application is installed and run successfully you will be able to see the result as shown below.

I hope you find this blog is very helpful while working with Vertical TextView with shadow effect. Let me know in comment if you have any questions regarding Android.
