Objective

The main objective of this blog post is to give you an idea about how to do Sprite Sheet Animation in Unity3D.



Are you looking for animation in your 2D games?

Do you want your Character have some real feel and look more living ?

Then here it is, I’ve brought you some easy and quick ways to make your game look attractive and give a real life feel to the character of your game.

In this post we will learn how to give animation to your game character with 2 easy ways.

  1. By Animation And Animator controller.
  2. By Scripting.

Interesting right..?

So tight up your seat belts and get ready for this joyful ride!

Let’s start with the first option.

1. By Animation And Animator Controller

  1. First set up the scene like the given image.

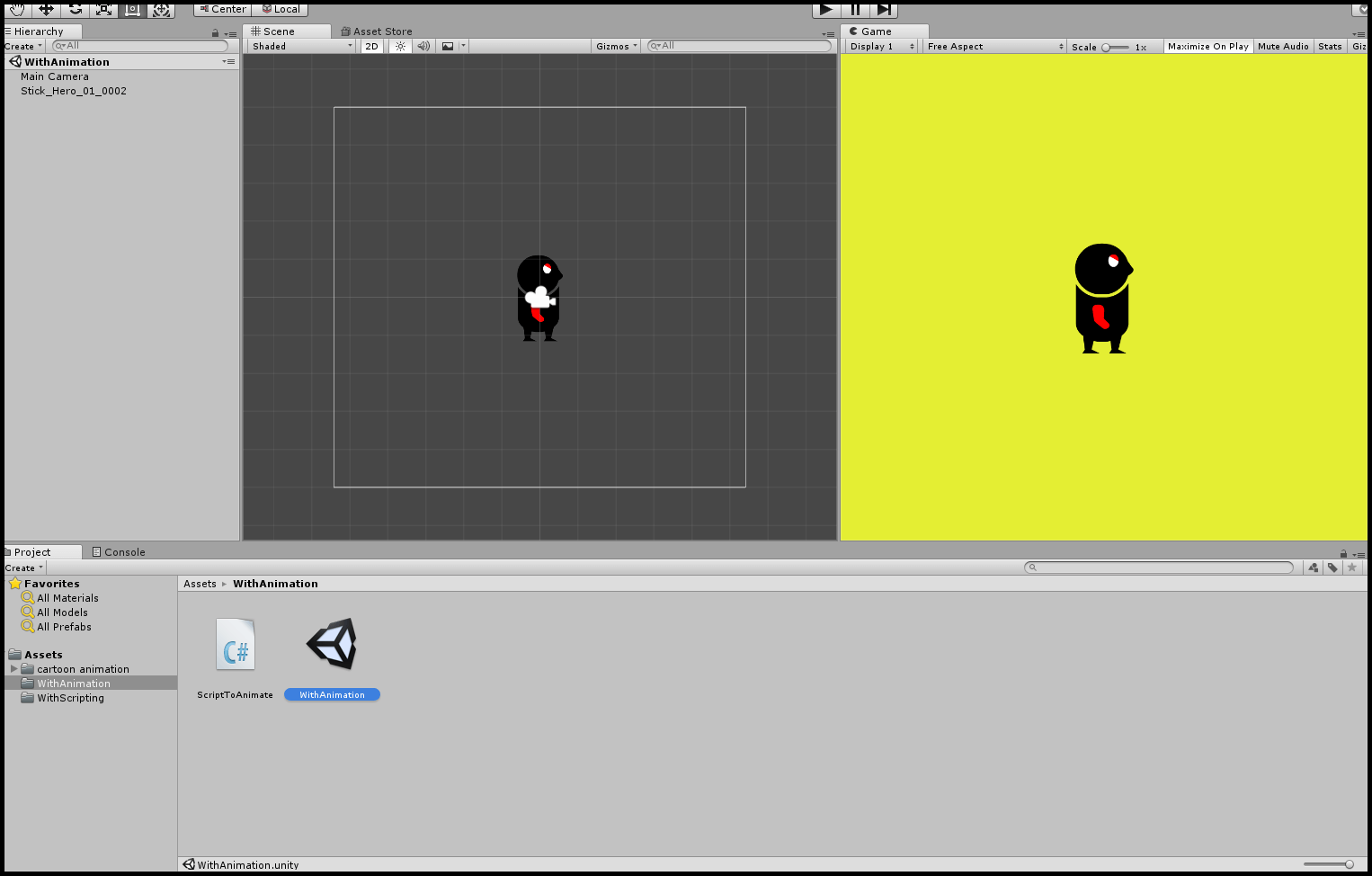

    By animation and animator controller scean setup in Sprite Sheet Animation

  2. Don't forget to add sprites folder that will be use for the the different animation to your scene, if you don't have the Sprites you can download it from here.

  3. Create a 2D sprite object and assign the first sprite of the idle Animation to it. (Idle animation is the animation in which the character is just standing still and breathing no other activity).

  4. Create the Script named AnimationWithScripting and attach it to hero Object.

  5. Now, follow the below steps to create the different animation.

    1. First select all the sprites of Idle Animation folder and drag it on our hero object and drop there, a new animation will be created. Then Unity will ask to name the animation name it as Idle.

    2. Then select all the sprites of Kick Animation folder and drag it on our hero objectand drop there , a new animation will be created. Again Unity will ask to name the animation name it as Kick.

    3. Then select all the sprites of Walking Animation folder and drag it on our hero objectand drop there, a new animation will be created. Again Unity will ask to name the animation name it as Walk. I hope you all are ready with your 3 animations.

    4. The animator controller will be automatically added to our hero object.

    5. Now set the transitions and trigger as per the below image.

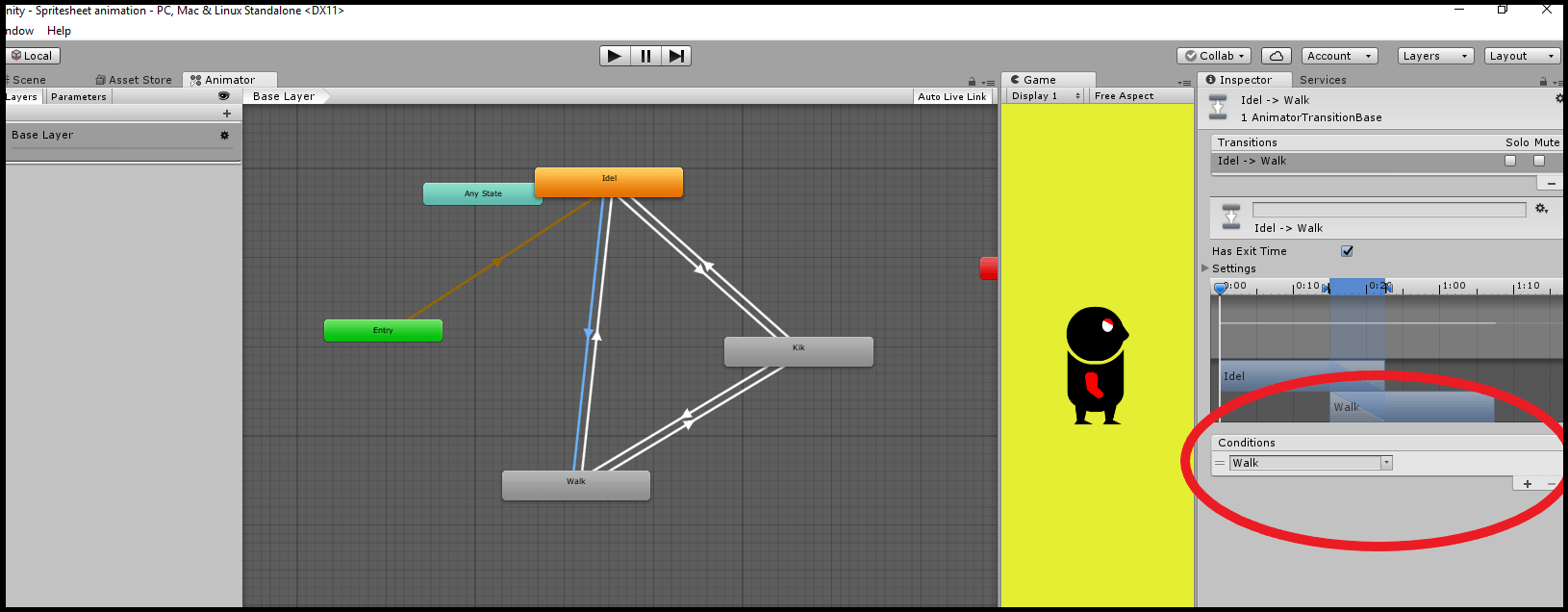

      trigger setup in sprite sheet animation

See what Triggers are to be set in the following transitions:

Transition Trigger
Idle -> Walking transition Walk
Walking -> Idle transition Idle
Kick -> Walking transition Walk
Walking -> Kick transition Kick
Idle -> Kick transition Kick
Kick -> Idle transition Idle

Let’s see the code is to be written in the Script

ScriptToAnimate.cs

using UnityEngine;
using System.Collections;
public class ScriptToAnimate : MonoBehaviour
{
    public Animator animator;
    void Update()
    {
        if (Input.GetKeyDown(KeyCode.I))
        {
            animator.SetTrigger("Idle");
        }
        if (Input.GetKeyDown(KeyCode.K))
        {
            animator.SetTrigger("Kick");
        }
        if (Input.GetKeyDown(KeyCode.W))
        {
            animator.SetTrigger("Walk");
        }
    }
}

Let’s see what's there in the scripts.

Name Type Description
Animator animator; variable To store the reference of the Animator Controller of the object
Update() Unity Callback To write conditions according which the animation is To be triggered

Go to Unity now and play the scene you will see the idle animation playing default.

Now press the keys I, K and W respectively and check.

Did you see your character..?

Yeyy ! your character got life. Your character is breathing, kicking and walking.

I'm sure you are on the right track. Now, let’s move to another method.

By Scripting

  1. First set up the scene like the given image.

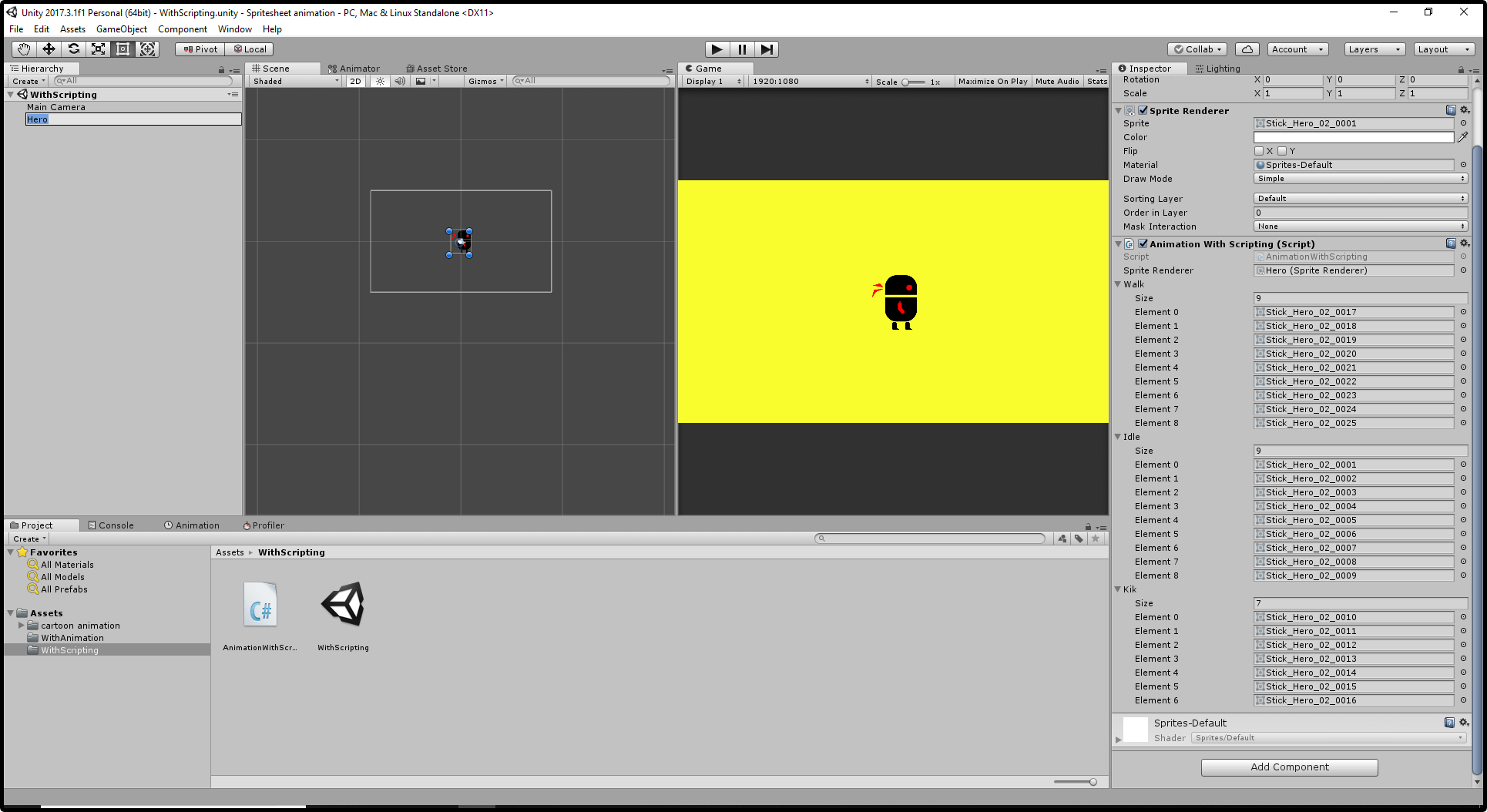

    By scripting scene setup in Sprite Sheet Animation

  2. Don't forget to add sprites folder that will be use for the the different animation to your scene, if you don't have the Sprites you can download it from here.

  3. Create a 2D sprite object and assign the first sprite of the idle Animation

  4. Create the Script named as AnimationWithScripting and attach it to hero Object and write the following code in it

    AnimationWithScripting.cs
    using UnityEngine;
    using System.Collections;
    public class AnimationWithScripting : MonoBehaviour
    {
        public SpriteRenderer spriteRenderer;
        public Sprite[] walk;
        public Sprite[] idle;
        public Sprite[] kick;
        void Start()
        {
            StartCoroutine(Idle());
        }
        void Update()
        {
            if (Input.GetKeyDown(KeyCode.I))
            {
                StopAllCoroutines();
                StartCoroutine(Idle());
            }
            if (Input.GetKeyDown(KeyCode.K))
            {
                StopAllCoroutines();
                StartCoroutine(Kick());
            }
            if (Input.GetKeyDown(KeyCode.W))
          {
                StopAllCoroutines();
                StartCoroutine(Walk());
            }
        }
        IEnumerator Idle()
        {
            int i;
            i = 0;
            while (i < idle.Length)
            {
                spriteRenderer.sprite = idle[i];
                i++;
                yield return new WaitForSeconds(0.07f);
                yield return 0;

            }
            StartCoroutine(Idle());
        }
        IEnumerator Walk()
        {
            int i;
            i = 0;
            while (i < walk.Length)
            {
                spriteRenderer.sprite = walk[i];
                i++;
                yield return new WaitForSeconds(0.07f);
                yield return 0;
            }
            StartCoroutine(Walk());
        }

        IEnumerator Kick()
        {
            int i;
            i = 0;
            while (i < kick.Length)
            {
                spriteRenderer.sprite = kick[i];
                i++;
                yield return new WaitForSeconds(0.07f);
                yield return 0;

            }
            StartCoroutine(Kick());
        }
    }


  5. Now go to Unity and add the sprites of walking, kicking and idle state in their following lists in the inspector as per the image.

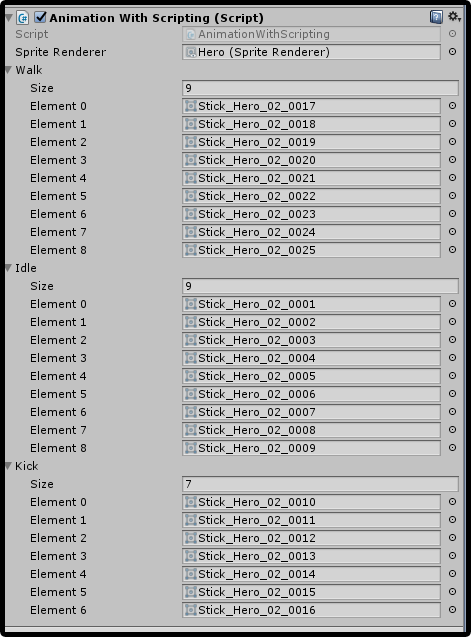

    list setup sprite sheet animation

Let’s see what's there in the script.

But wait...

In this script, the coroutine is used for Sprite Sheet animation. If you don’t know how to use coroutine.

Don't worry our coroutine unity blog post will help you. Trust me you will be master in 10mins.

Name Type Description
Start() Unity Callback To start the idle coroutine.
SpriteRenderer spriteRenderer; variable To store the reference of the spriterenderer of the object.
Sprite[] walk; list To Store walking Sprites
Sprite[] idle; list To store idle Sprites
Sprite[] kick; variable To store Kicking Sprites
Update() Unity Callback To write conditions according which the animation is played
IEnumerator Idle() coroutine To Run the Idle Animation
IEnumerator Kick() coroutine To Run the Kicking Animation
IEnumerator Walk() coroutine To Run the Walking Animation

Now, go to Unity and play the scene you will see the Idle animation playing default.

Now press the keys I,K and W respectively and check.

Yeahhhhh ! Again you see character, its breathing kicking and walking.

But wait which one is more optimised?

Yes, maybe you would be having the same question.

Both the methods run the same way when checked in the profiler.

So, it's up to you whichever you feel easy and quick and in accordance to the requirement of your game.
